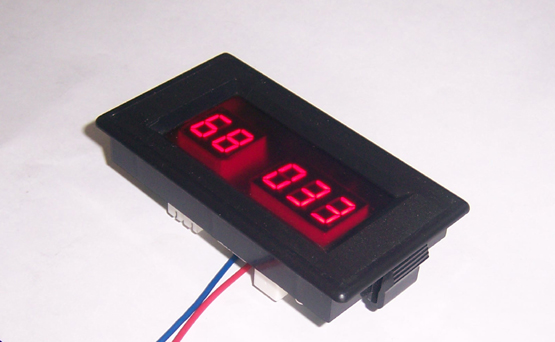

2.No Load Current:60MA
3.Output Port:2-channel complementary output(the same freuqncy,opposite phase)
4.Duty Cycle Adjusting Step:1%
0.1Hz-102.4Hz
1.Frequency Range:0.1Hz-102.4Hz
2.Frequency Adjusting Step:0.1Hz
3.Duty Cycle Range:1%-99%
1Hz-1024Hz
1.Frequency Range:1Hz-1024Hz
2.Frequency Adjusting Step:1Hz
3.Duty Cycle Range:1%-99%
10Hz-10.24kHz
1.Frequency Range:10Hz-10.24kHz
2.Frequency Adjusting Step:10Hz
3.Duty Cycle Range:1%-99%
0.2kHz-34kHz
1.Frequency Range:0.2kHz-34kHz
2.Frequency Adjusting Step:200Hz
3.Duty Cycle Range:2%-98%
5Hz-5120Hz
1.Frequency Range:5Hz-5120Hz
2.Frequency Adjusting Step:5Hz
3.Duty Cycle Range:1%-99%

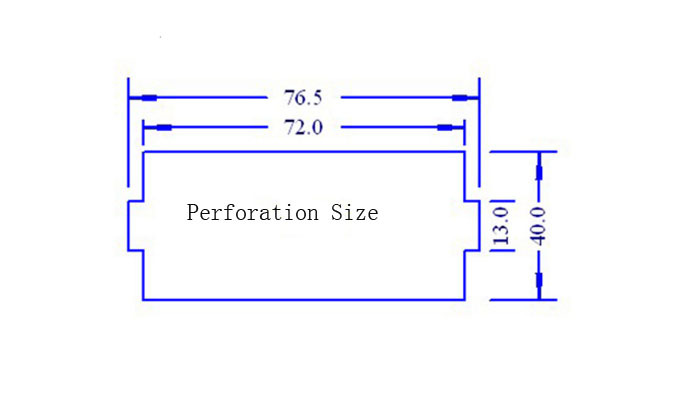

Using Introduction:

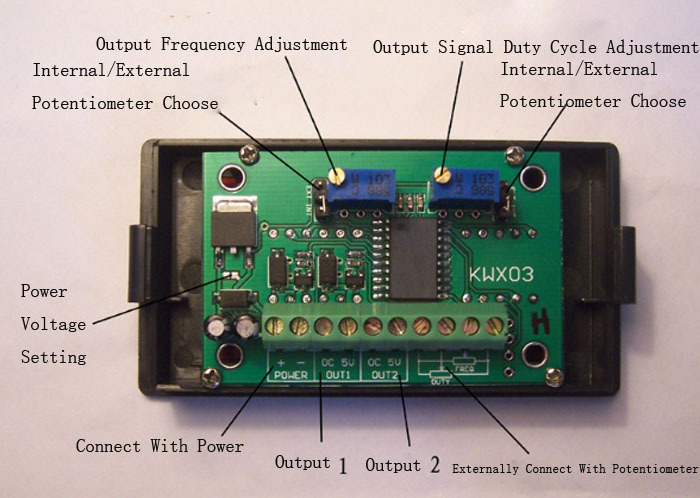

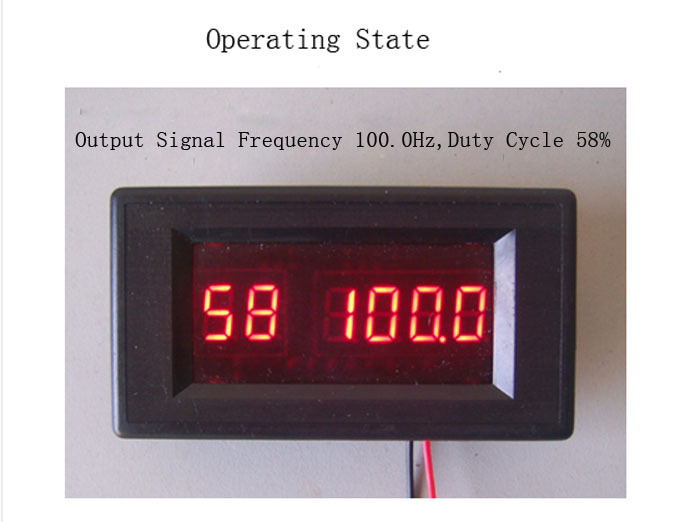

1.Ouput Frequency Adjustment:used to adjust output signal frequency
2.Output Signal Duty Cyle Adjustment:used to adjust output signal duty cycle
3.Internal/external Potenitometer Option:when using external potentiometer,plug mini jumper in EXT;when using circuit self-equpped potentiometer,plug mini jumper in INT
4.External Potentiometer Port:to externally install potentiometer

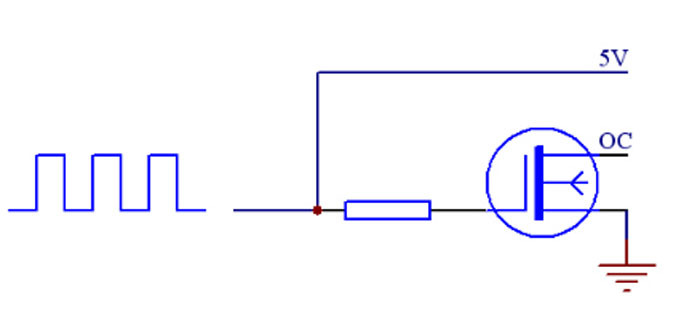

5.Output 1:marking 5V is 5V signal output port,maximum output current is 50MA;marking OC is collector open circuit output port,withstand current is 30V,output low level current is 1500MA
6.Output 2:marking 5V is 5V signal output port,maximum output current is 50MA;marking OC is collector open circuit output port,withstand current is 30V,output low level current is 1500MA
7.Power:DC 5V-24V
8.Power Voltage:when power voltage is 5V,connect with two soldering pads;when power voltage is 7V-24V,disconnect two soldering pads
